Description
Key Features

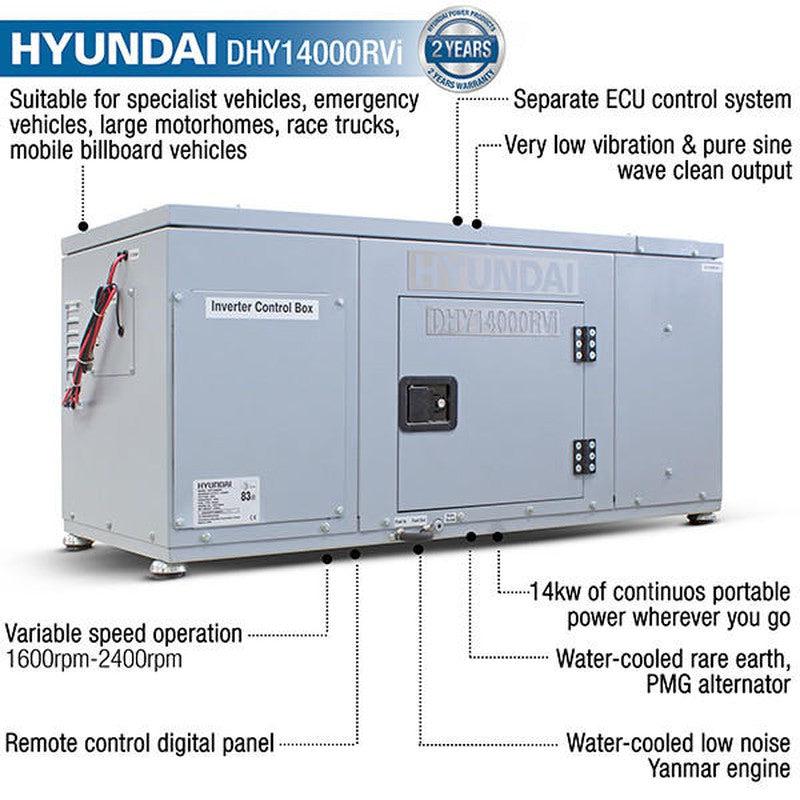

- Powerful water-cooled diesel Yanmar engine: Produces a maximum output of 14kW
- Lightweight design: Designed to be mounted on a large motorhome, race truck, mobile billboard vehicle or specialist vehicle
- Ultra-quiet, low-vibration generator: Won't disturb others
- Excellent fuel economy: Cost-effective source of power
- Pure sinewave output: Safe to use with sensitive electronic equipment such as laptops, TVs, etc
- Control panel inside vehicle: Easy to start/stop the generator and monitor performance
- Peace of mind: 2 year Hyundai domestic warranty* (terms apply)

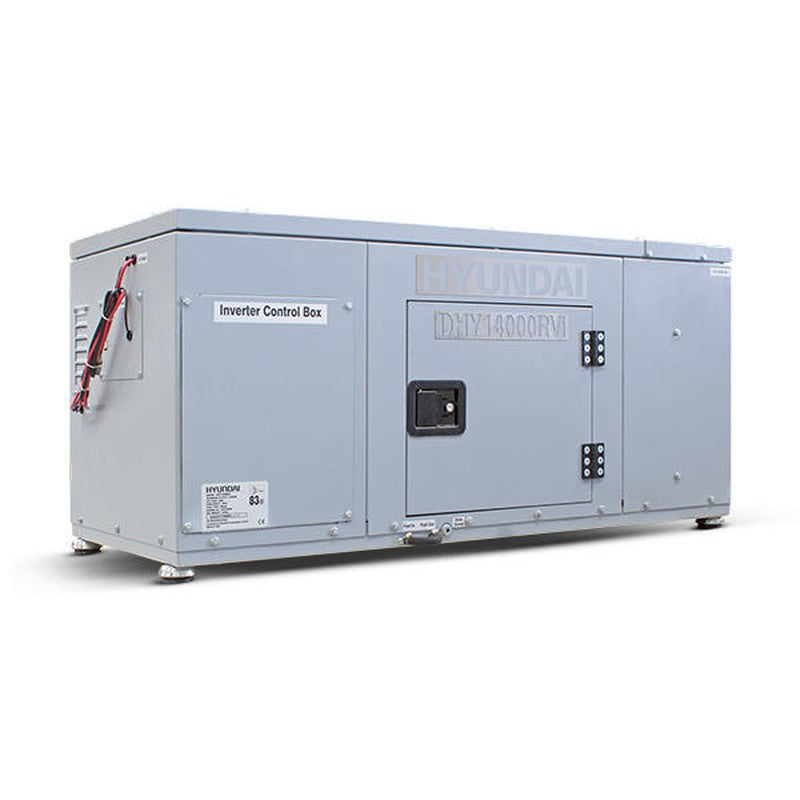

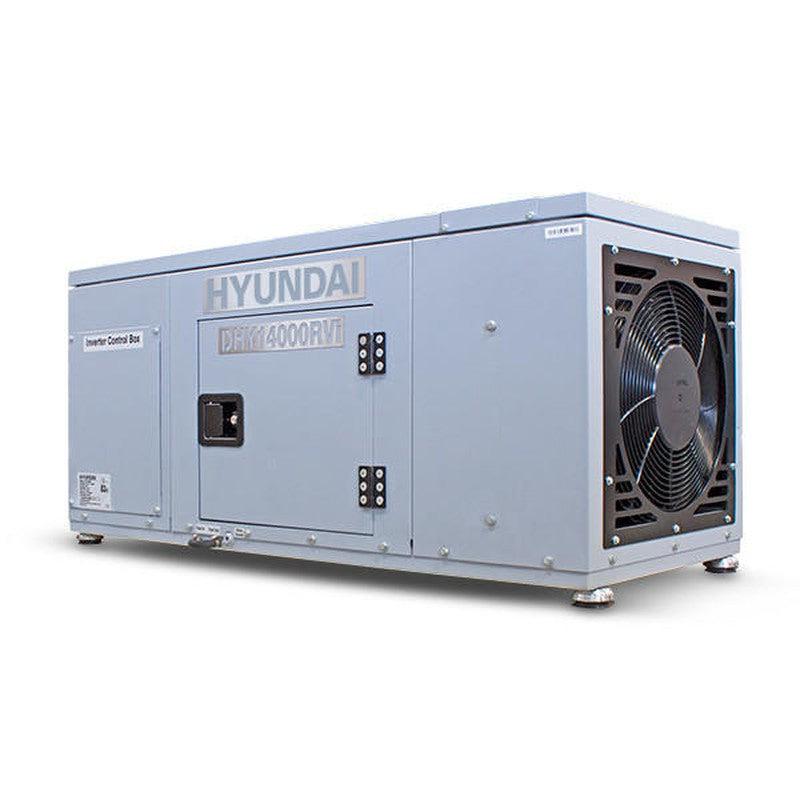

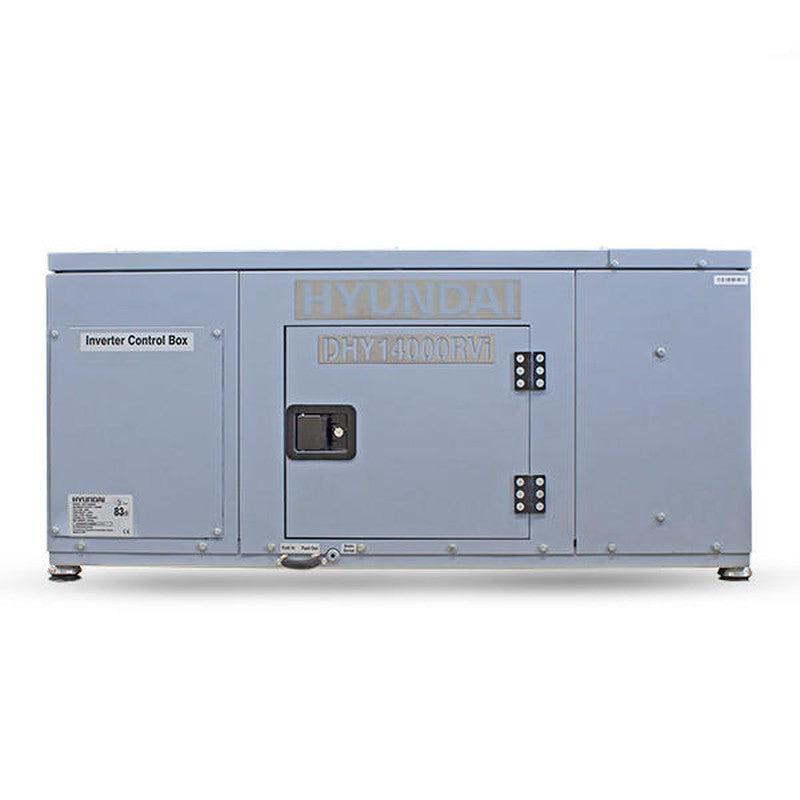

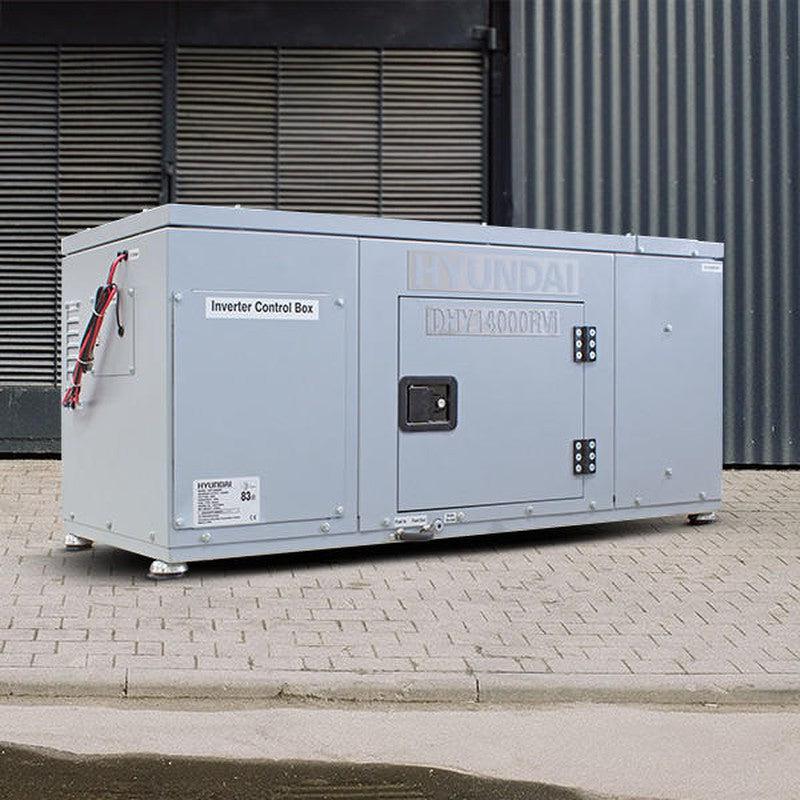

Hyundai 14kW Onboard Vehicle Diesel Generator
The DHY14000RVi is a compact and lightweight diesel generator designed to be permanently mounted on top of a large motorhome, a race truck, a mobile billboard vehicle or specialist vehicle. Providing a convenient and cost-effective source of power, this generator has an impressive maximum output of 14kW.

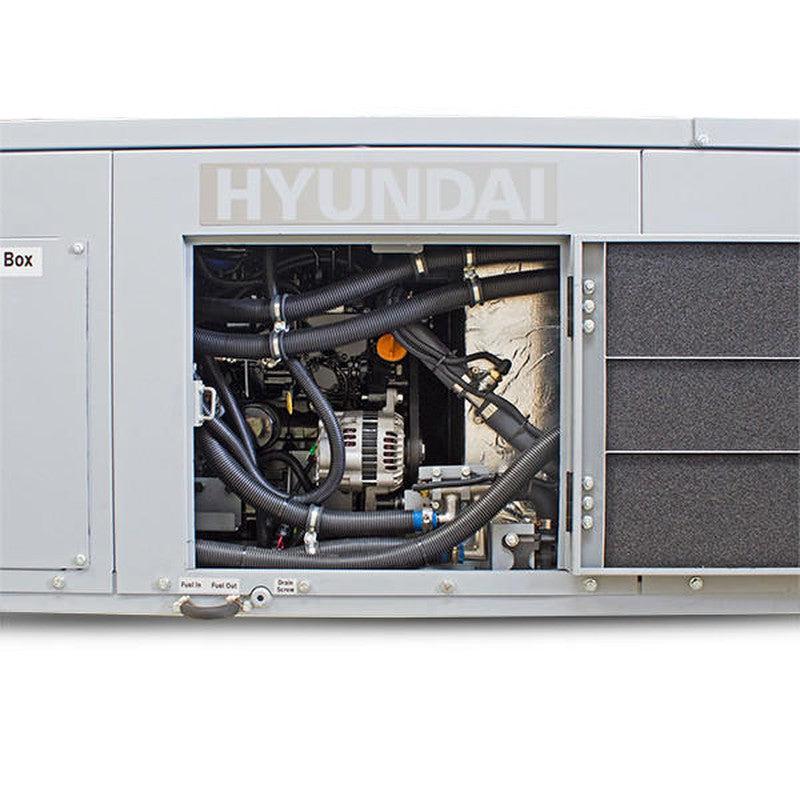

Powered by a 4-stroke OHV water-cooled 3TNV76 diesel engine, the DHY14000RVI is able to produce up to 14kW and is more than capable of powering televisions, large heaters, air conditioning, air pumps for inflatable beds, hairdryers, laptops, phone chargers, lights, etc.
Motorhome Generator
This diesel generator ideal for use with your motorhome or sports home, allowing you to take both modern luxuries and home comforts with you wherever you go.
Able to produce a pure sinewave output, this means that this petrol generator can safely power all sensitive electronics, such as TVs, laptops, etc, without the risk of damaging or overloading them.
Easy To Use
This generator is really easy to use, making it extremely popular for powering family holidays, and it’s also built with low maintenance requirements for cost-effective, fuss-free power whilst away from home.
Safe-To-Mount Quiet Generator

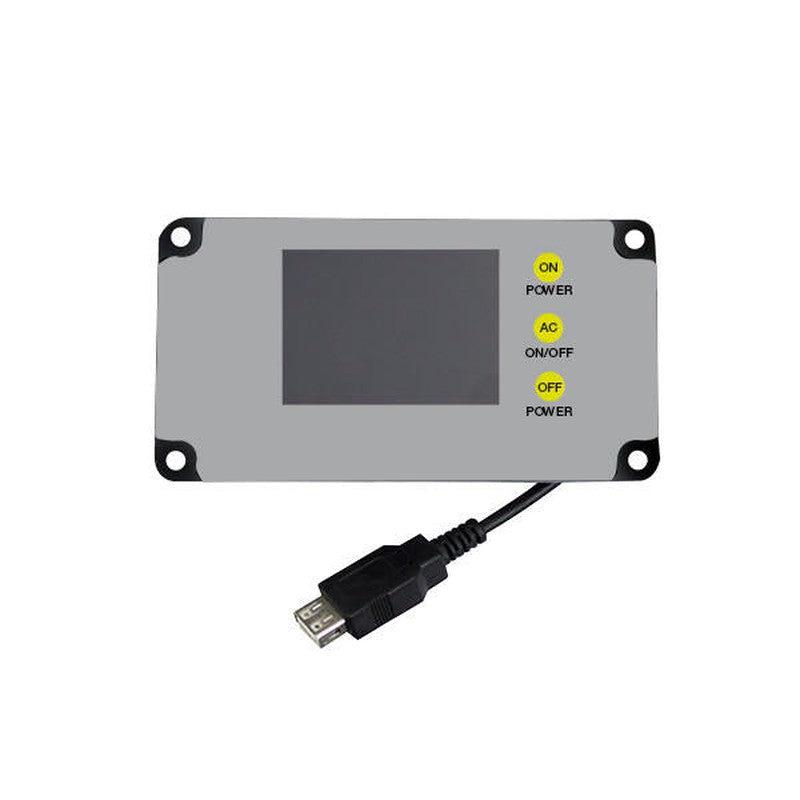

The digital control panel is mounted inside the vehicle - connected to the generator via an 8m USB cable - allowing you to start and stop the generator without having to go outside into the elements. This control panel also allows you to monitor fuel level, oil level, frequency, AC voltage, power usage, battery voltage and hours run.
Delivering low noise, extremely low vibration and excellent fuel economy at 291g / kw/h @ 75% load, the DHY14000RVI ranges from 10kVA~30kVA with a variable speed operation of 1600rpm - 2400rpm.
2 Year Warranty
This 14kW diesel generator is covered by our 2 year Hyundai domestic warranty* / 1 year commercial warranty* (terms apply).
Specifications
| Dimensions (H x W x L) (mm) | 1520X604X750 |
|---|---|
| Dry Weight - kg | 345 |
| Engine Model | Yanmar 3TNV76 Diesel Engine Model |
| Engine Type | Vertical |
| Frequency (Hz) | 50 |
| Fuel Tank Capacity (L) | Dependant On Vehicle Fuel Tank |
| Maximum Power (kW) | 14 |
| Oil Capacity (ml) | 1.6-3.8 |
| Rated Power (kW) | 12 |
| Rated Speed (RPM) (rpm) | 1600-2400 |
| Start Method | 12v Electric Start |
| Voltage (VAC) | 110 / 220 / 240 / 380 |
| Recommended Oil Type | 10w40 / 15w40 |
| In the Box | HY14000RVI, Remote Control Panel, 8m Cable, Engine Oil (15w40 / 10w40 grade), User Manual |
| Assembly Required? | Yes - some assembly may be required |
