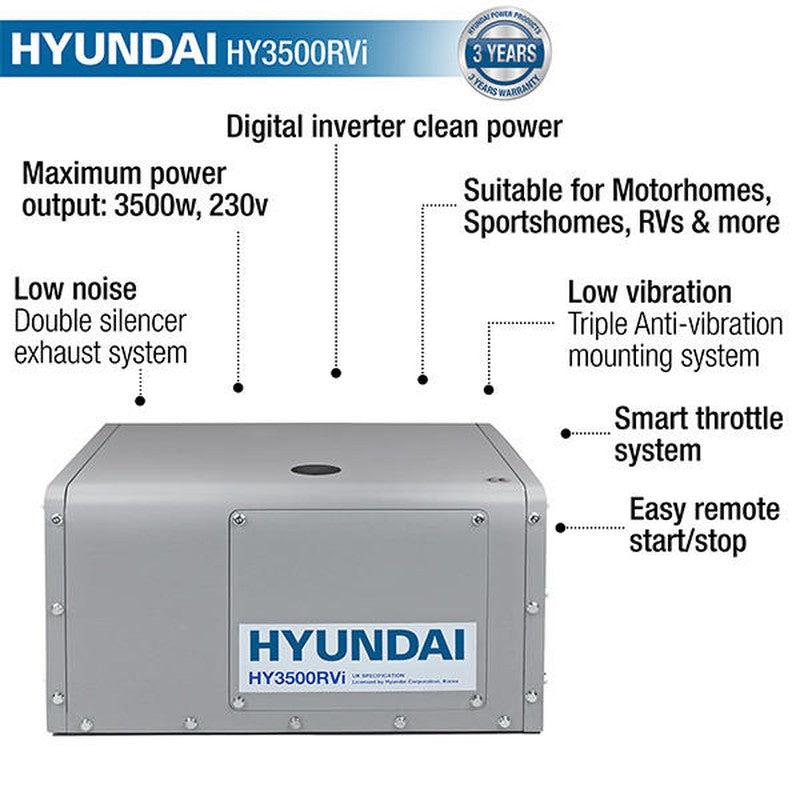

Description
- Power - Maximum output 3500w, 230v
- Digital inverter clean power
- Economy - Smart throttle system
- Easy- Remote start/stop

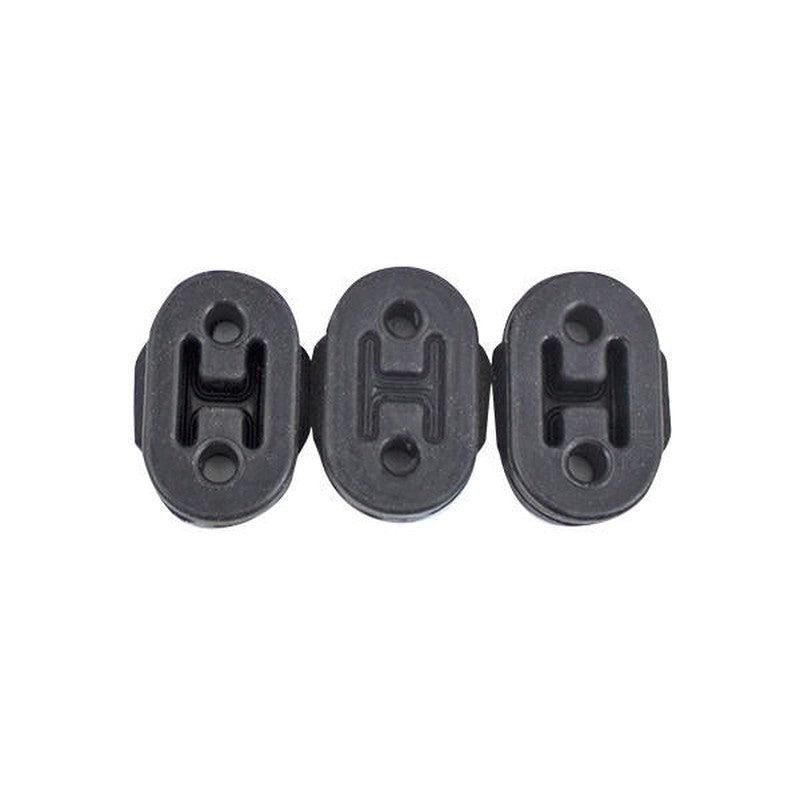

- Low vibration- Triple Anti-vibration mounting system
- Low noise- Double silencer exhaust system
- Complete kit ready to install
- Suitable for Motorhomes, Sportshomes, RVs, welfare vehicles, horse lorries, race trucks, service vans etc.
- Engine oil included (15w40 / 10w40 grade)
- Full UK spares and technical support
- Covered by Hyundai 2 year standard warranty

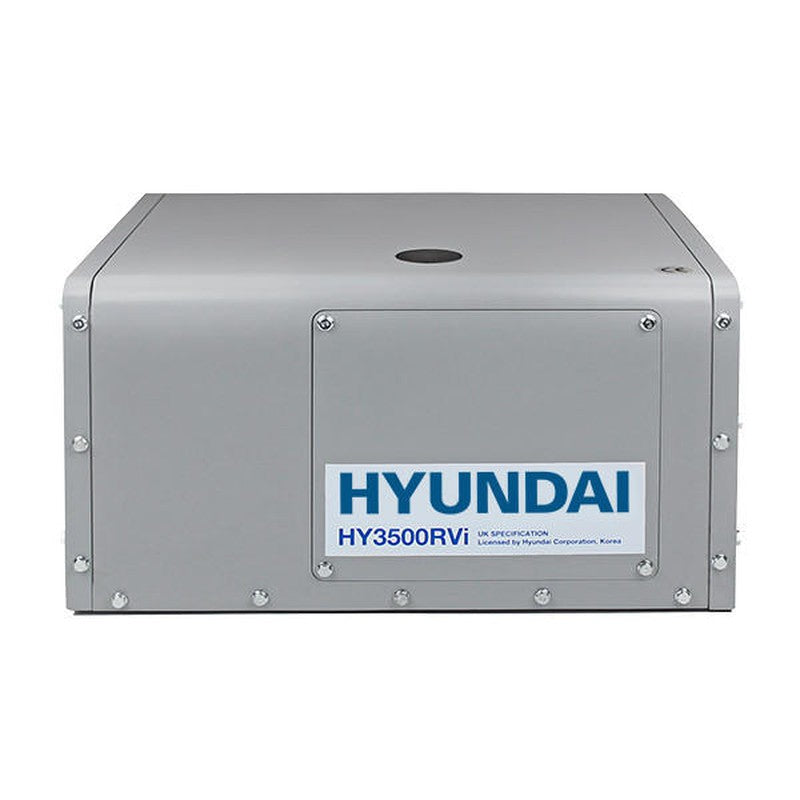

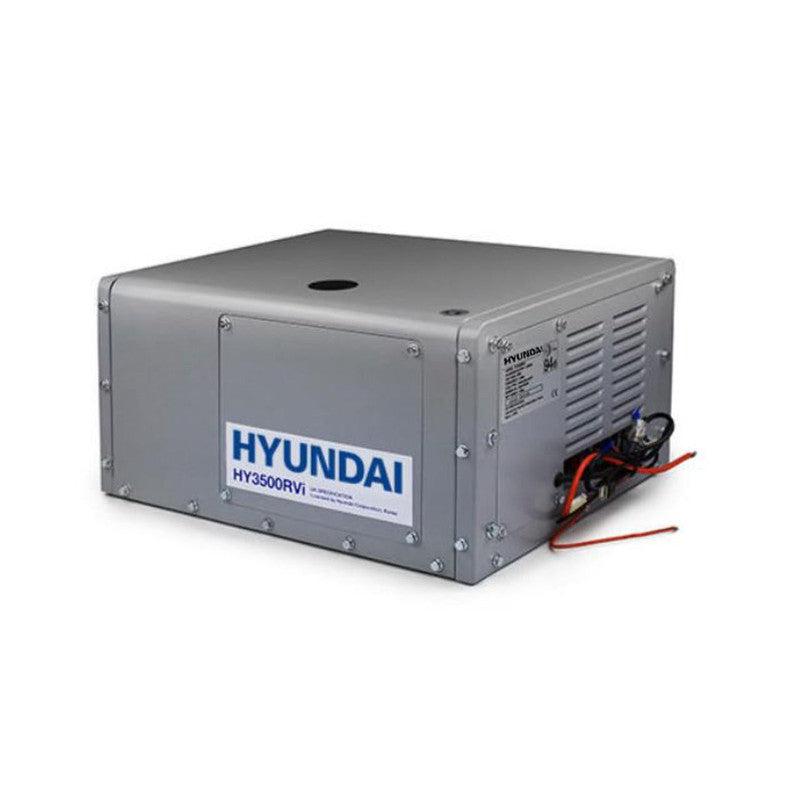

Hyundai 3.5kw Underslung Inverter Generator

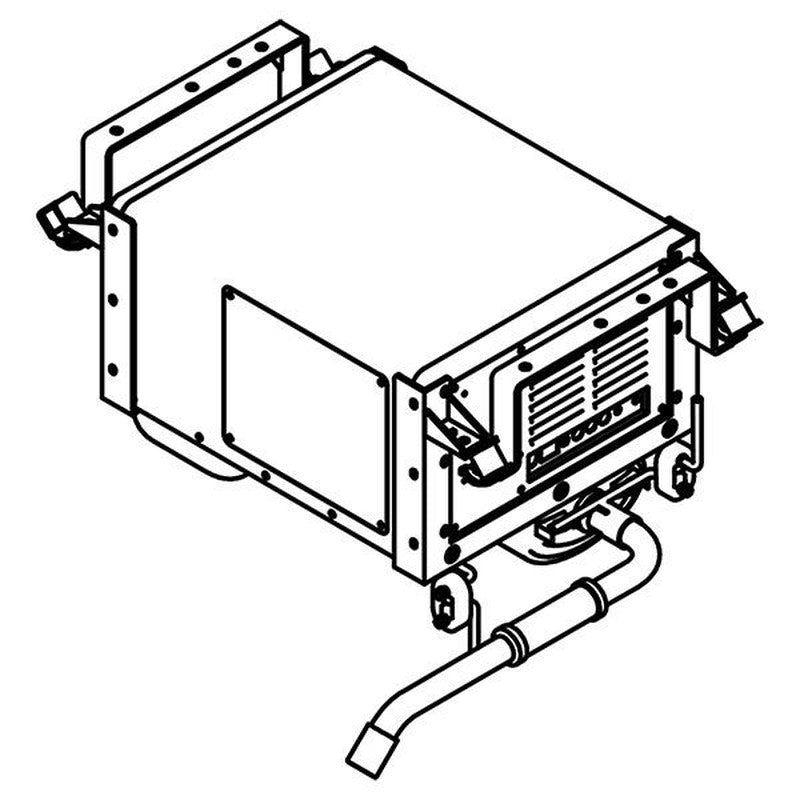

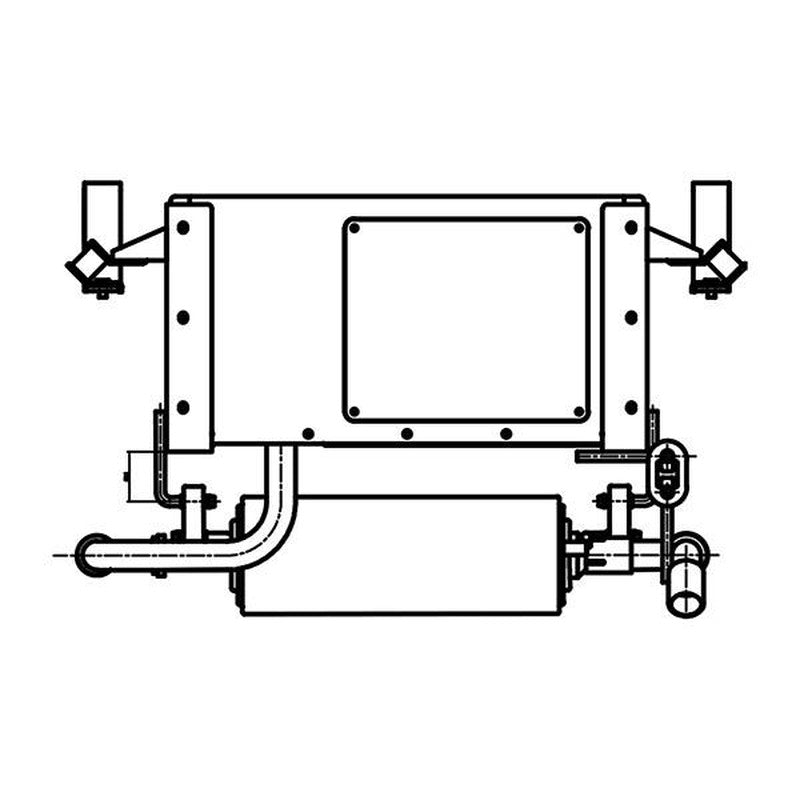

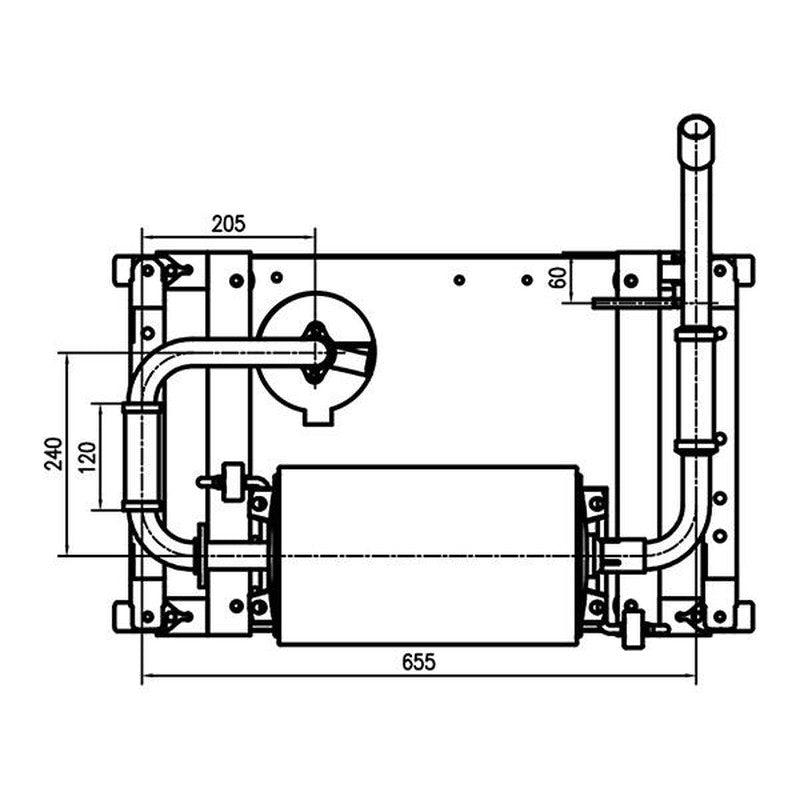

The Hyundai HY3500RVi is an inverter generator designed to be mounted underneath a RV motorhome, horsebox, truck, or camper. It can be permanently mounted to the chassis or mounted within a locker on slide out mounts.
IC225 4-stroke OHV Petrol Engine
Powered by the Hyundai IC225 4-stroke OHV petrol engine with electric start, electronic ignition and low oil level protection, the HY3500RVI has an impressive maximum output of 3500w / 3.5kW, and continuous power rating of 3000w / 3kW.
Tri-fan System To Increase Cooling And Reduce Noise

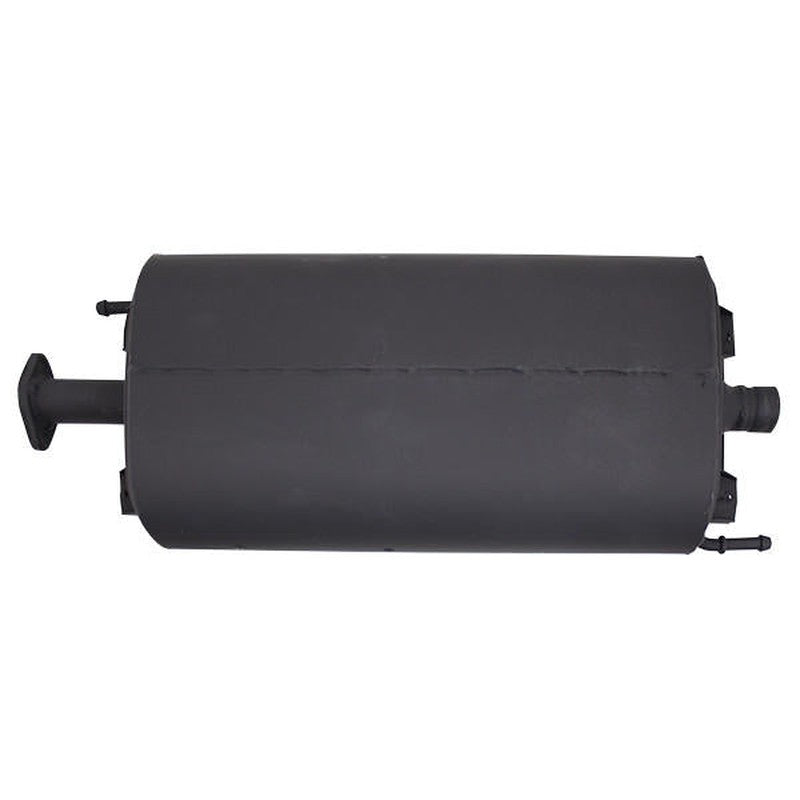

The air-cooled engine draws in cool air around the sides of the canopy through a Tri-fan system to increase cooling and reduce noise and the hot air and exhaust fumes are directed downwards and expelled underneath the vehicle. The generator comes with an additional external exhaust silencer to be mounted underneath the vehicle to further reduce noise levels.
24 Litre Stainless Steel Petrol Tank
The external 24 litre stainless steel petrol tank comes with mounting brackets and a filler tube and fittings to fit the filler in the outside panel of the vehicle. It incorporates a fuel pump and fuel level sender unit.This will give a run time of up to 24 hours with a light load and 12 hours under full load.
Low Noise, Low Vibration And Good Fuel Economy

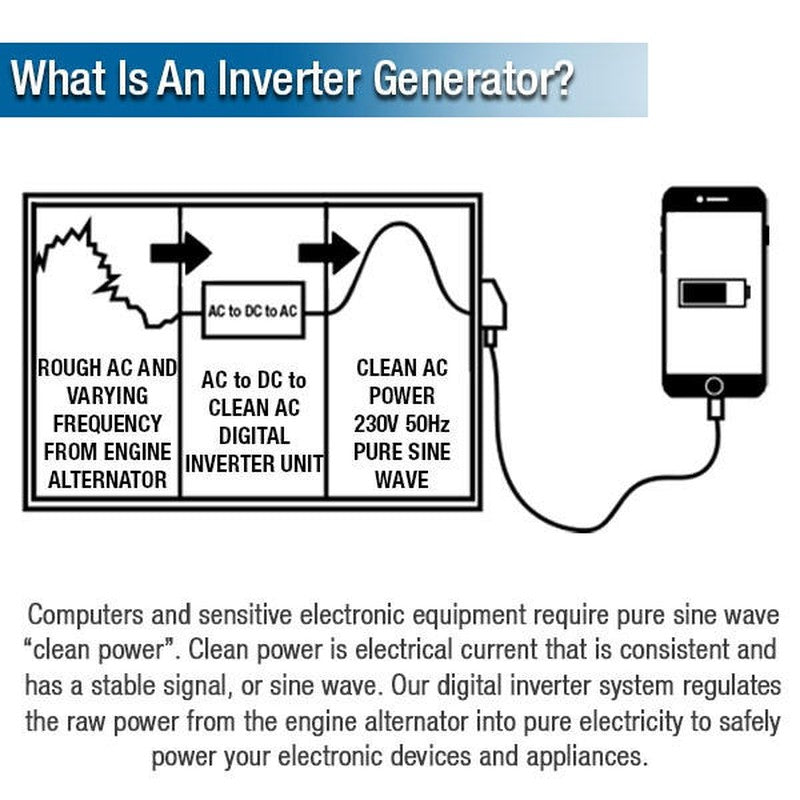

Designed to offer low noise, low vibration and good fuel economy the HY3500RVi features a triple anti-vibration system, twin silencers, triple fan cooling system and digital inverter technology to reduce engine rpm and noise which increases fuel economy and engine lifespan, whilst delivering a fully overload protected pure sine wave clean power output.

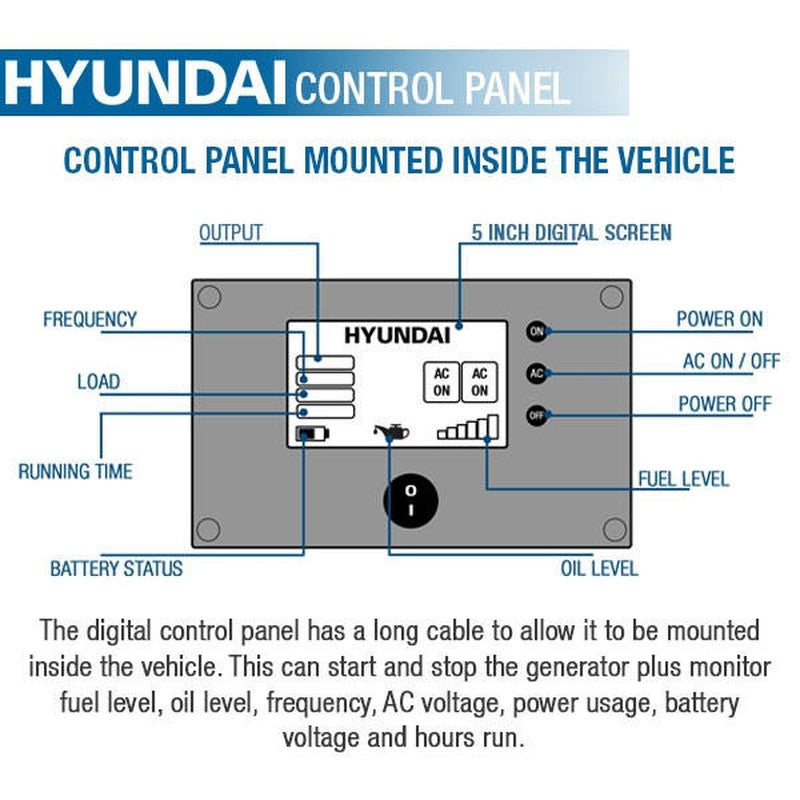

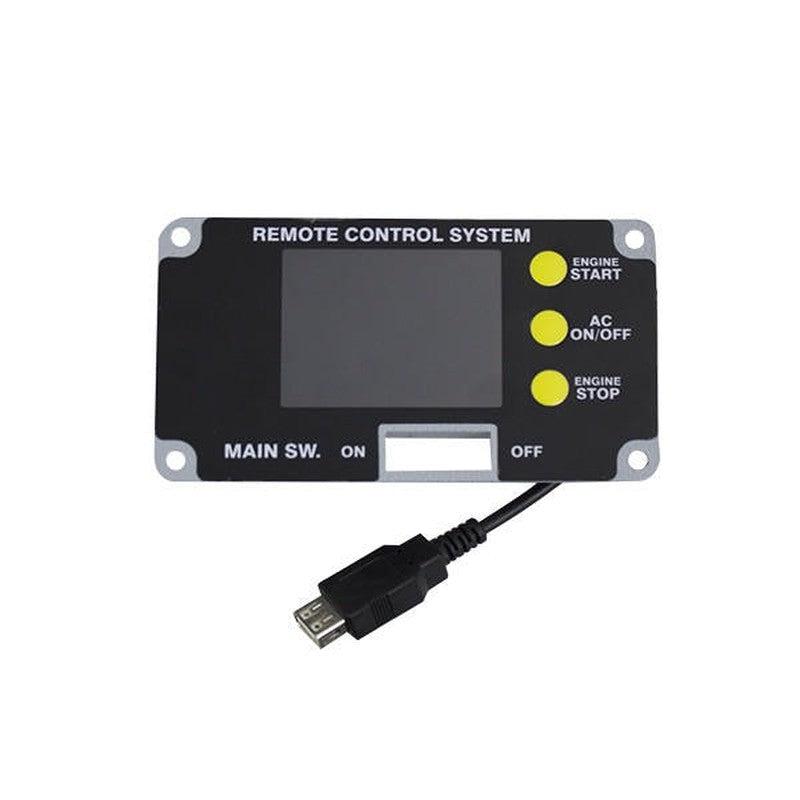

Digital Control Panel

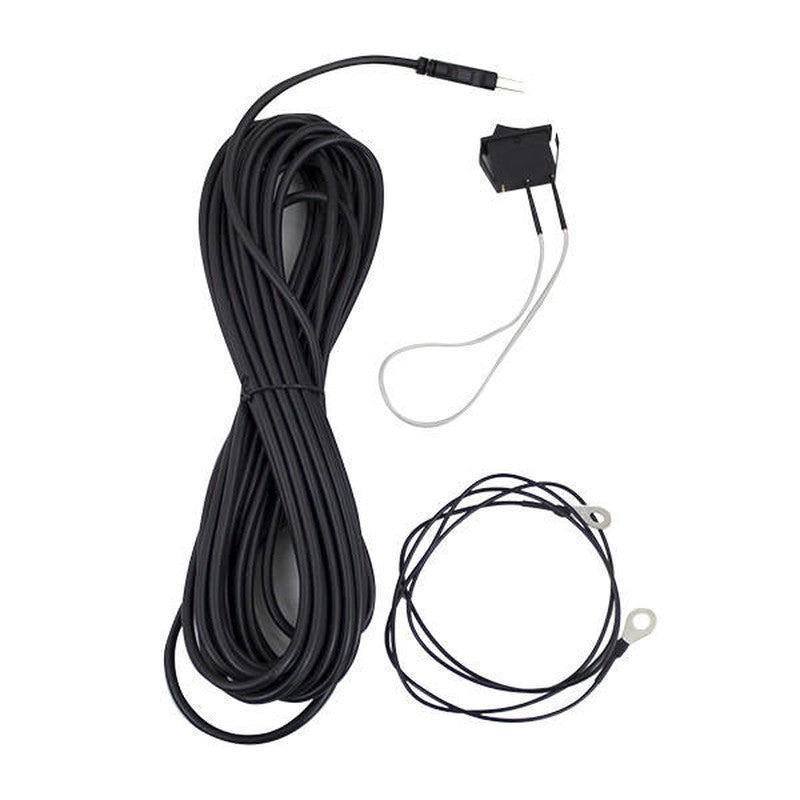

The digital control panel has a 6m cable to allow it to be mounted inside the vehicle and can start and stop the generator plus monitor fuel level, oil level, frequency, AC voltage, power usage, battery voltage and hours run.

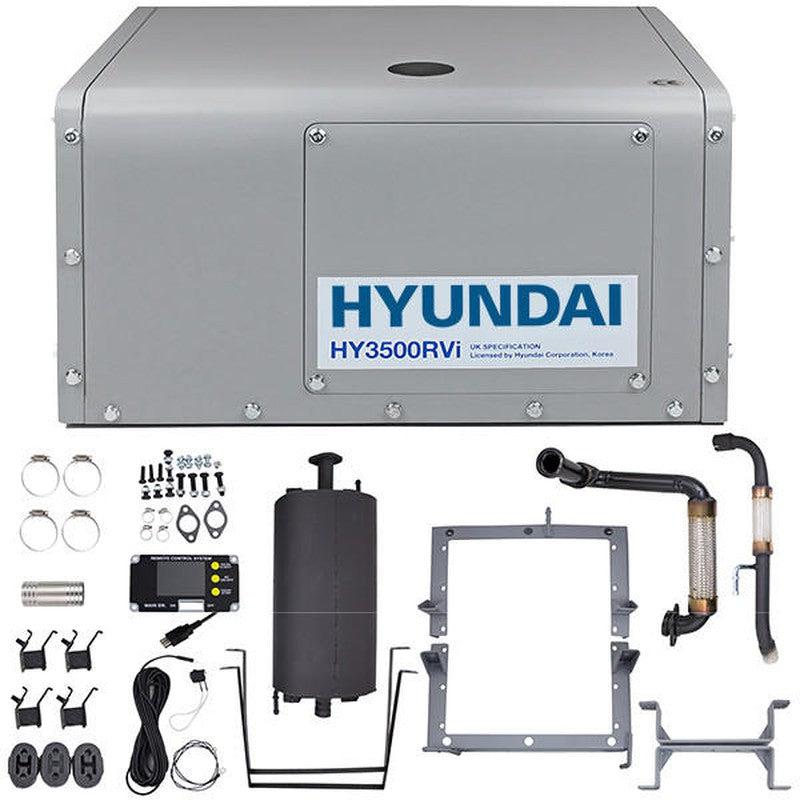

Included with each generator:

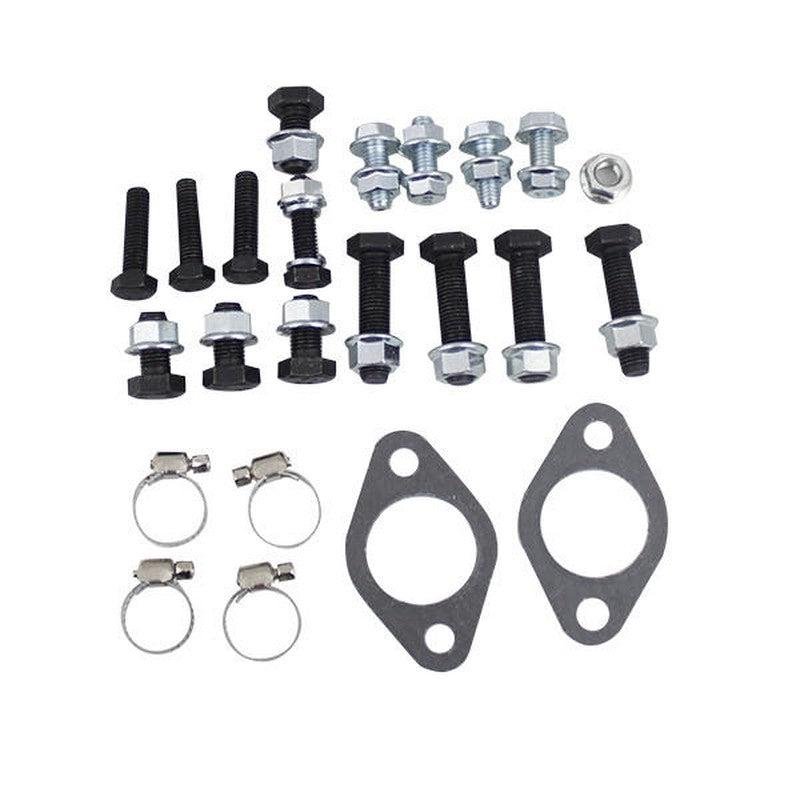

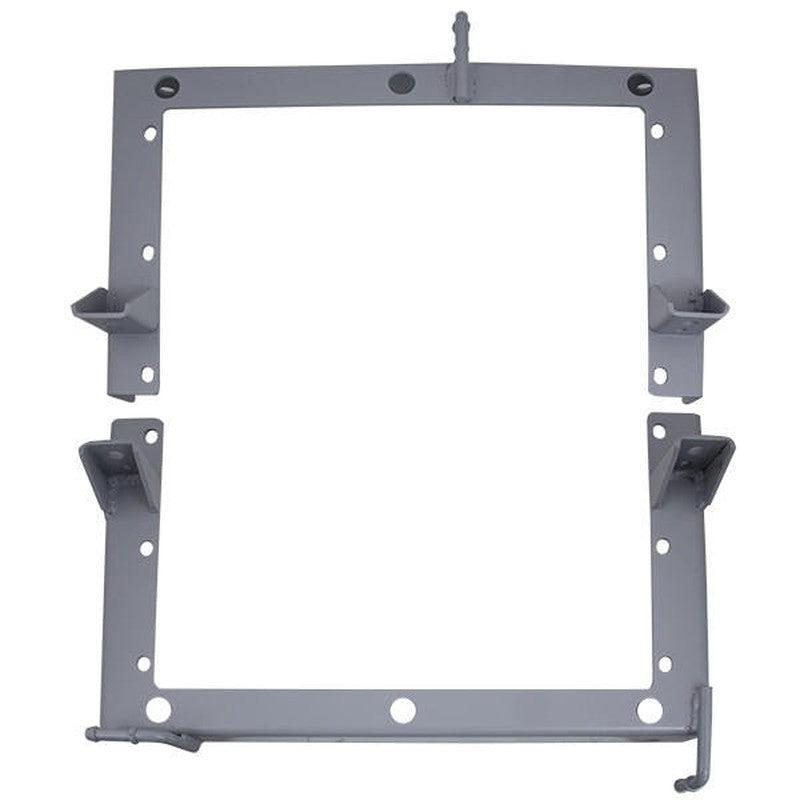

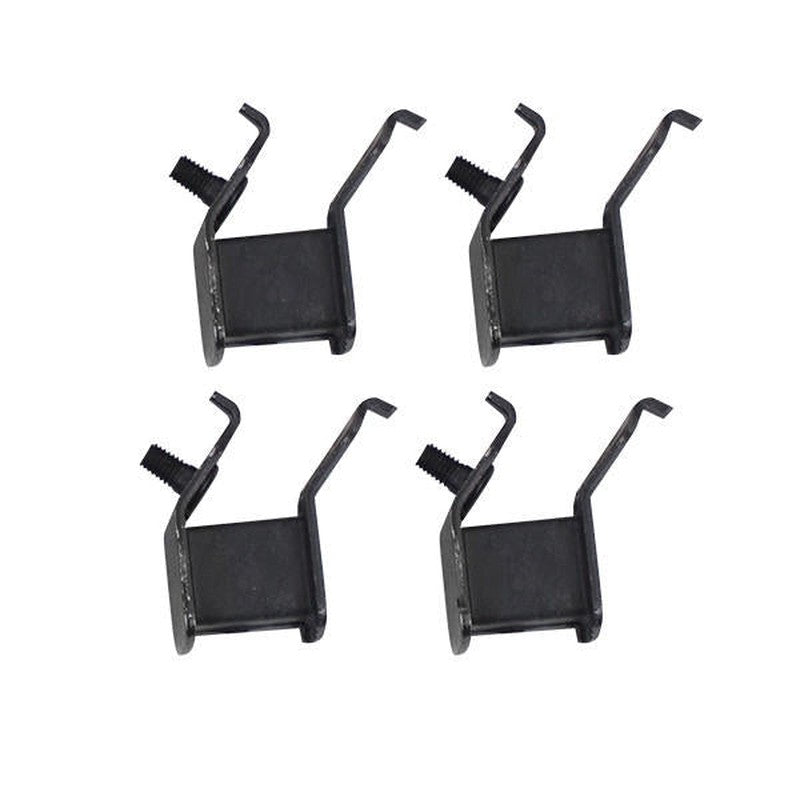

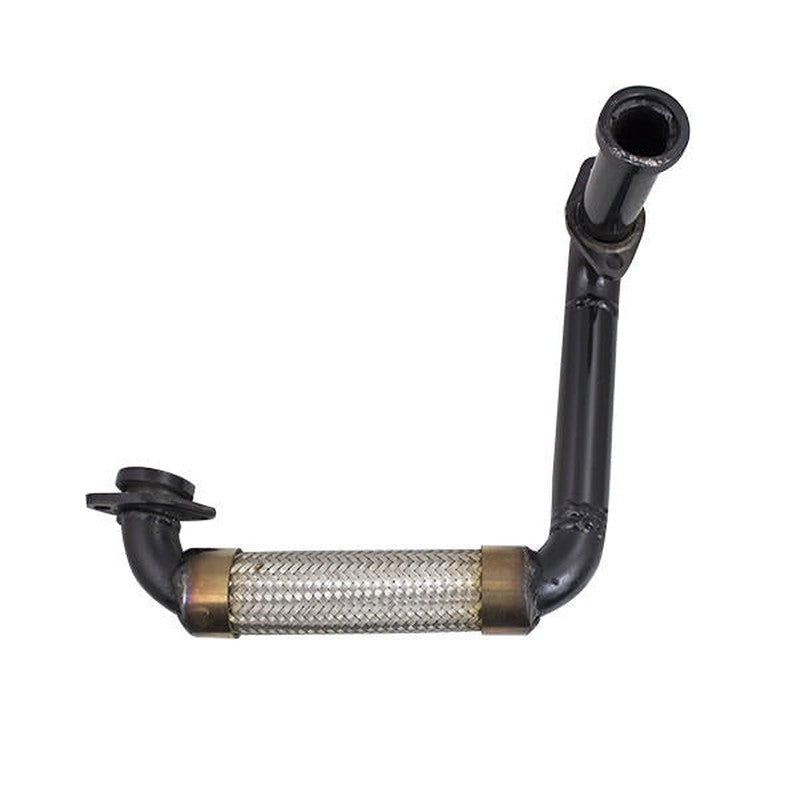

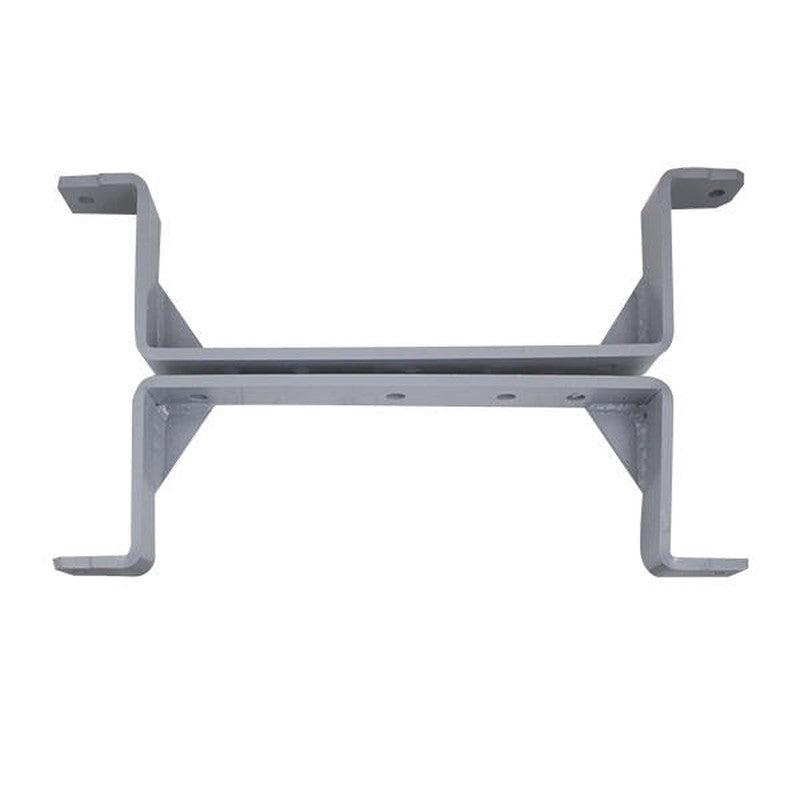

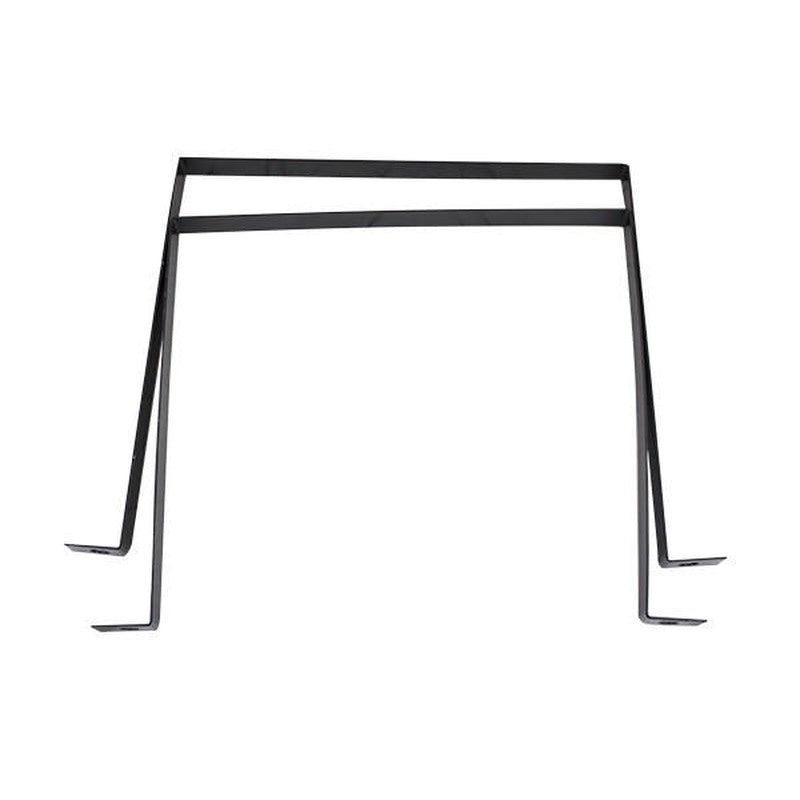

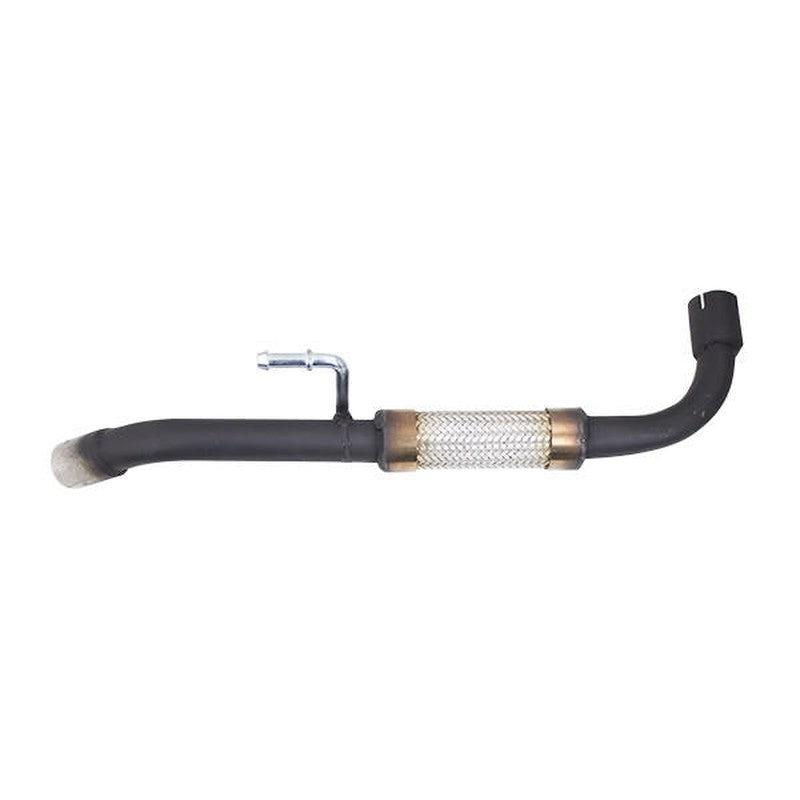

Choice of either slide out mounting brackets or fixed under chassis mounts, 24L stainless steel petrol tank includes fuel pump and sender, with mounting brackets and extended fuel filler tube with fittings, 6m cable and digital control panel, external silencer and flexible connecting pipe.
Engine Oil Included (15w40 / 10w40 grade)
Warranty
Covered by the Hyundai two year warranty.
Specifications
| Model | HY3500RVi |
|---|---|
| Start Method | Electric Start |
| Maximum Output (kW/w) | 3.5/3500 |
| Continuous Output (kW/w) | 3/3000 |
| Fuel Consumption @ 100% load (L/Hr) | 2.1 |
| Fuel Consumption @ 50% load (L/Hr) | 1.3 |
| Voltage Regulation Method | Digital Inverter Regulation |
| Phase | Single |
| Voltage | 230 |
| Connection Method(s) | 230V/13A |
| Rated Speed (RPM) | 2800 - 3600 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 0.95 |
| Power Factor (Cosφ) | JF210 |
| Engine Model | 4-Stroke OHV Air-cooled |
| Engine Type | 208 |
| Engine Size (cc) | 7 |
| Power Output (hp) | Unleaded Petrol |
| Fuel | 24 |
| Fuel Capacity (L) | SAE 15W-40 |
| Engine Oil | 600 |
| Engine Oil Capacity (ml) | 1 |
| Features | AC OFF 2800RPM |
| Casing | Closed |

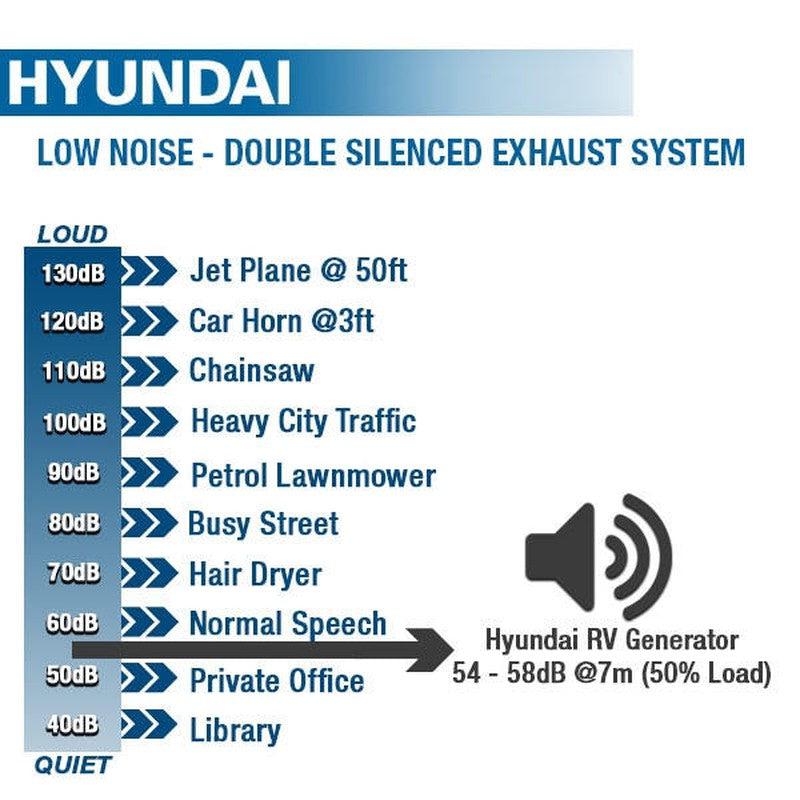

| Noise Level db (A) @ 7m | 58 |
| Wheel Kit? | No |
| Gross Weight (kg) | 65 |
| Net Weight (kg) | 46 |

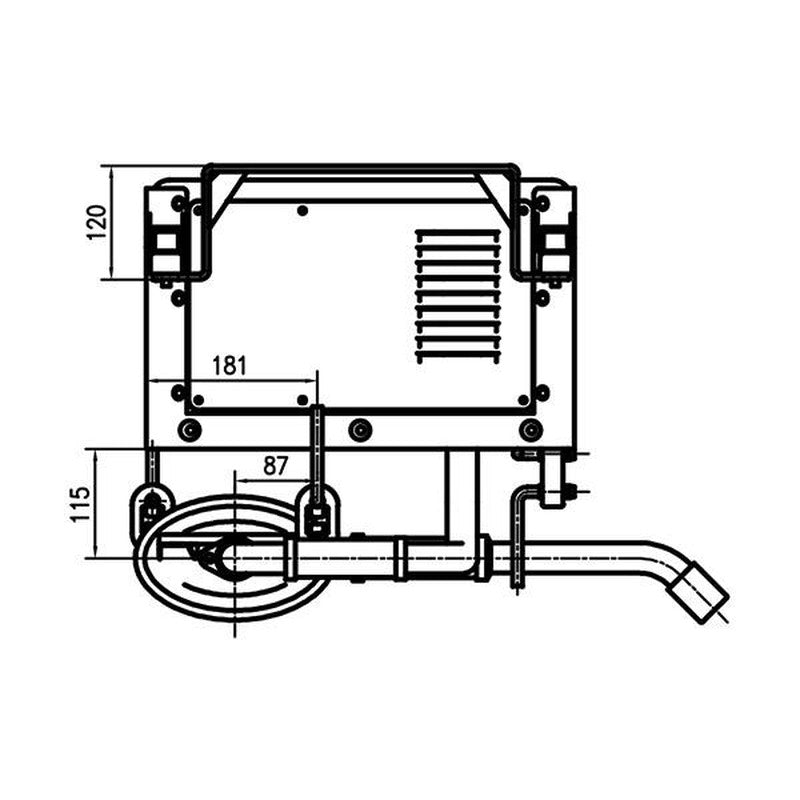

| Fully Assembled Dimensions (H x W x L) (mm) | 545 x 455 x 530 |
| Package Dimensions (H x W x L) (mm) | 730 x 580 x 675 |
| Fuel/Power Source | Petrol |
| Product Type | Generator |
| Warranty (years) | 2 |
| Commercial Warranty (years) | 1 |
| Model EAN | 600231974226 |
| In The Box | HY35000RVi, Engine Oil (15w40grade), User Manual, Under-Chassis Mounts, Fuel Tank Mounting Brackets, Extended Fuel Filler Tube With Fittings, 8m Cable and Digital Control Panel, External Silencer, Flexible Connecting Pipe |
| Assembly Required? | Yes - some assembly may be required |
